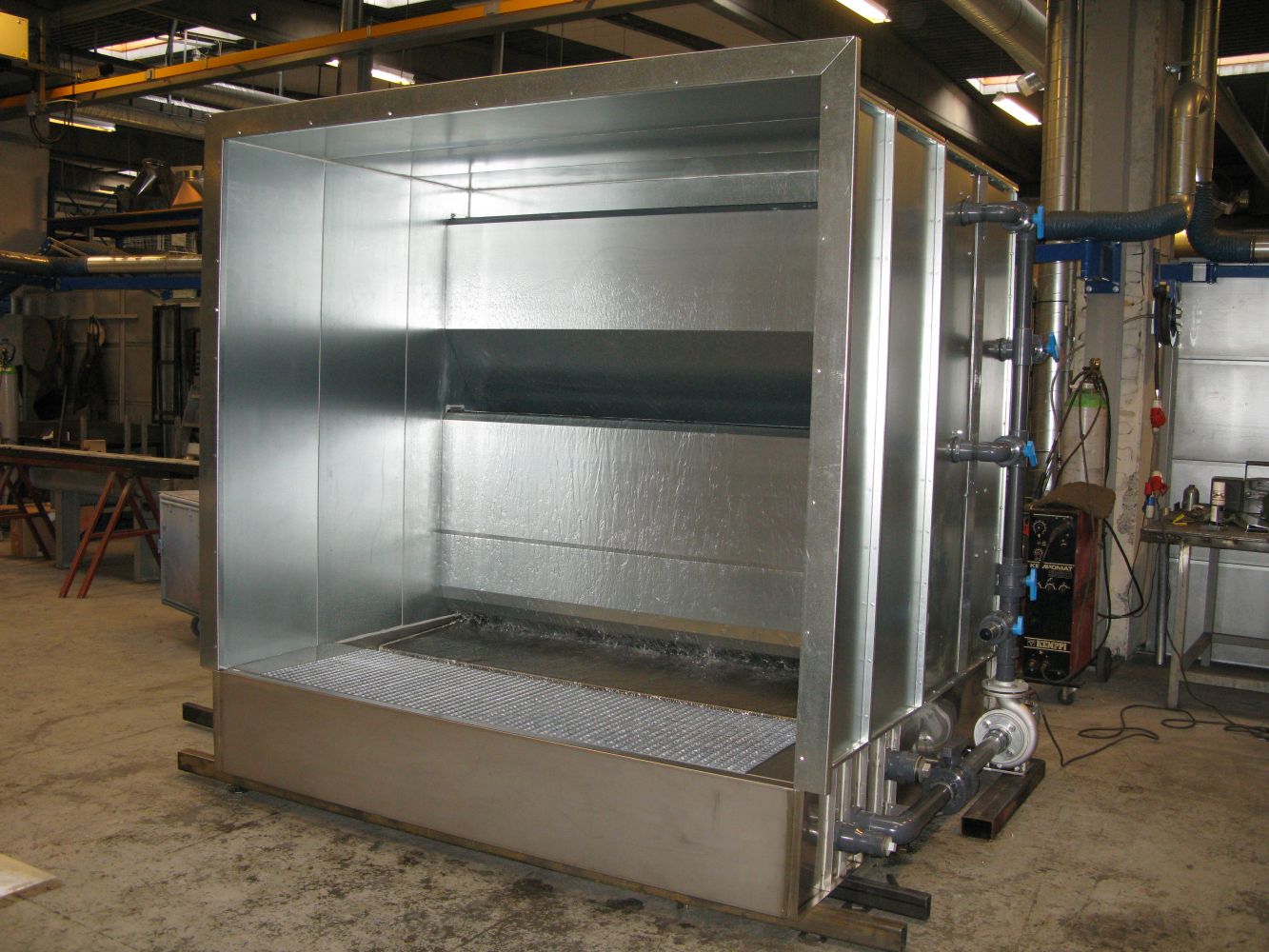

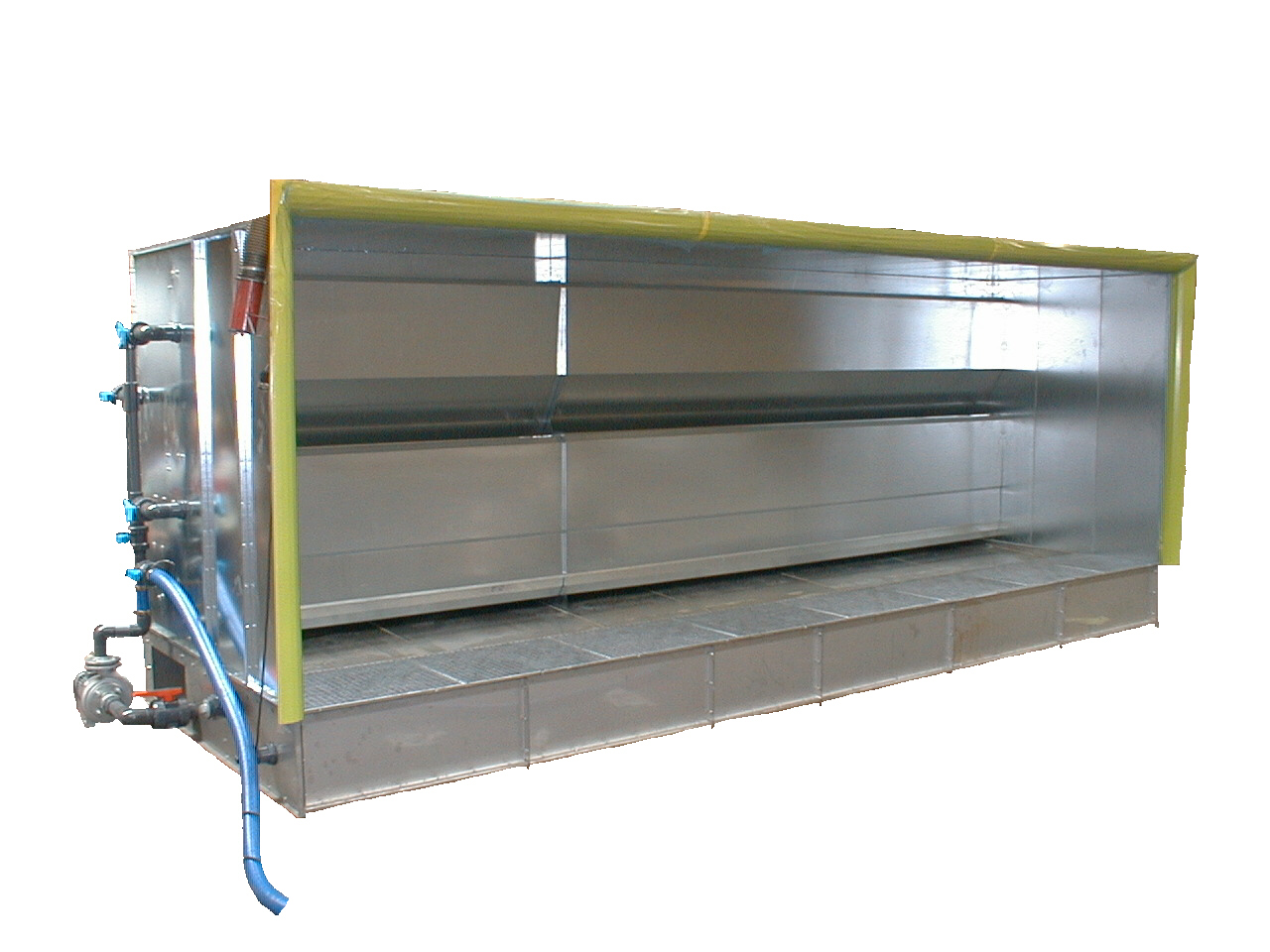

Water cabin featuring water on the back wall
The back wall of this cabin is sprinkled with water stemming from 2 overflow vessels.
In order to safeguard the working environment around the operator, an air flow is created from the operator towards the item and further towards the aspiration wall.
Air is also sucked out and guided on at each water vessel and at the bottom. From here, the air has to pass another three water falls, which are established behind the spray wall in the intermediate chamber. The top of that chamber is fitted with a drip catcher, ensuring that the drops of water are not guided out of the cabin.
The spray booth may be integrated into existing systems.
