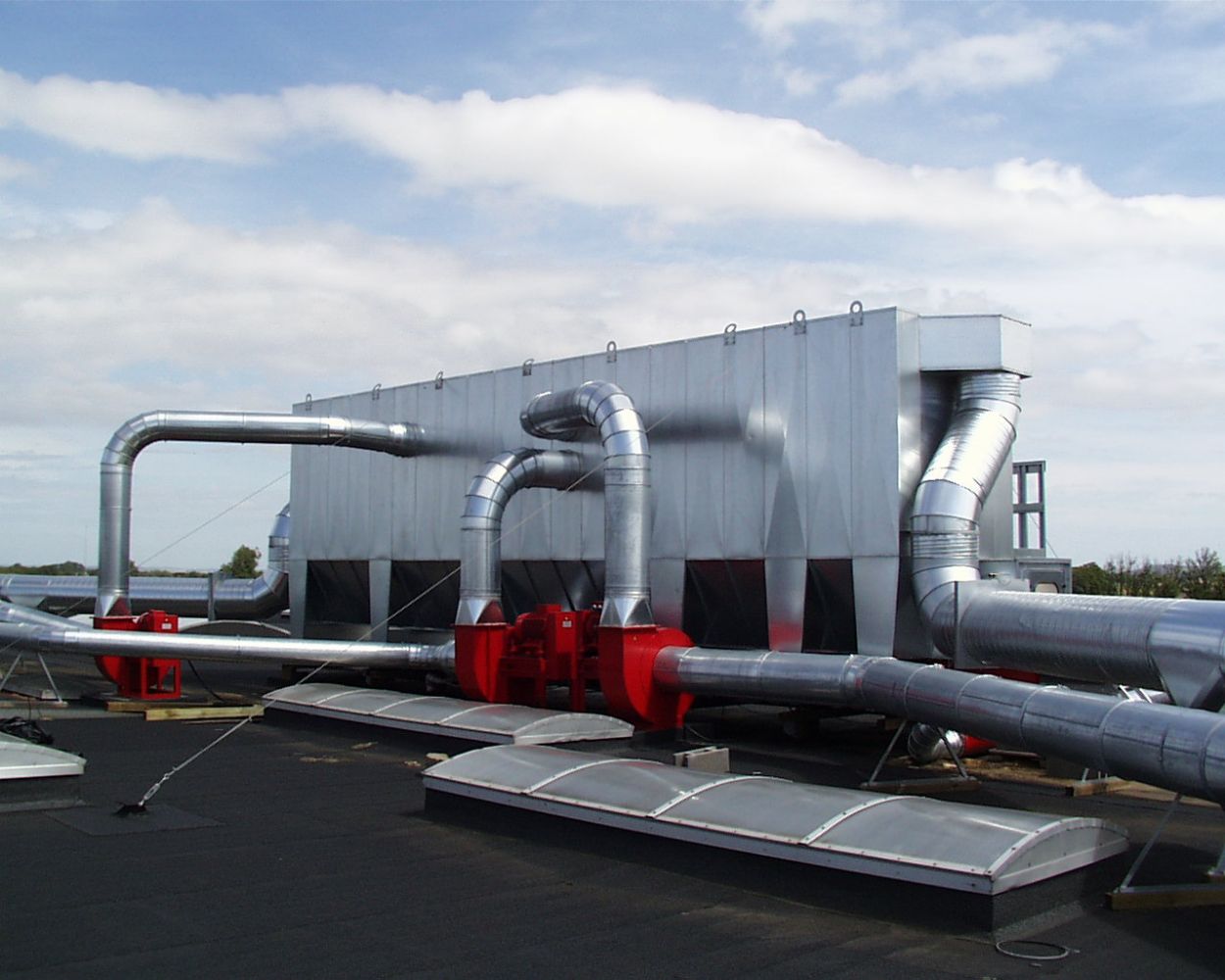

The purpose of the transport ventilator is to transport the air/material mixture from the processing machine to a filter system, in which the air is separated from the material by means of a filtration process. The ventilator is fitted with a fully welded steel housing, in which the ventilator wing is located.
The ventilator wing is equipped with self-cleaning blades designed for continuous material transport. The static wing is dynamically balanced during its production at the factory, and it is powered by an electric engine either directly or via belts. System components are produced in accordance with the Spiro pipe principle, and the system is easily and quickly assembled by means of nipples and couplers.

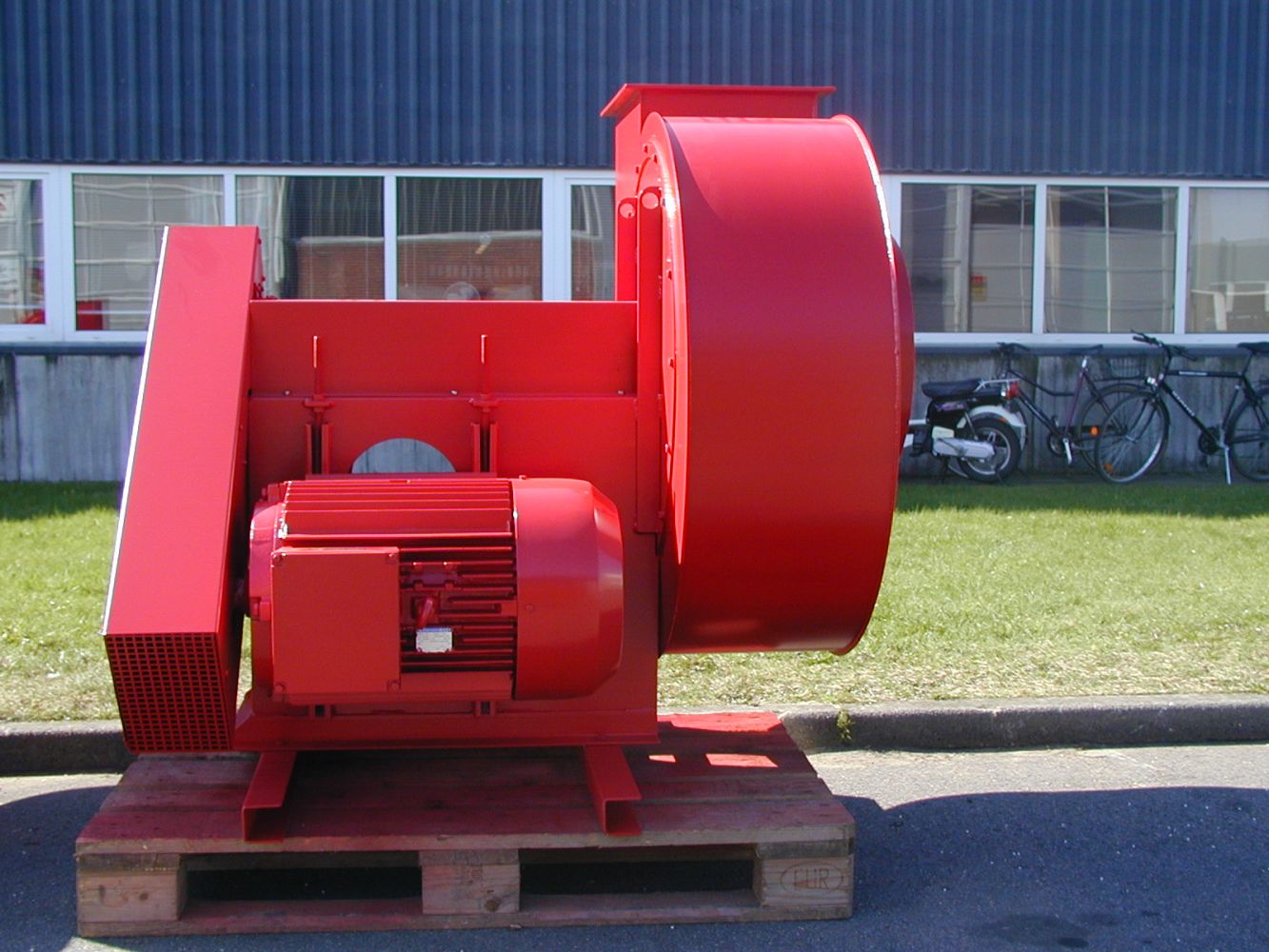

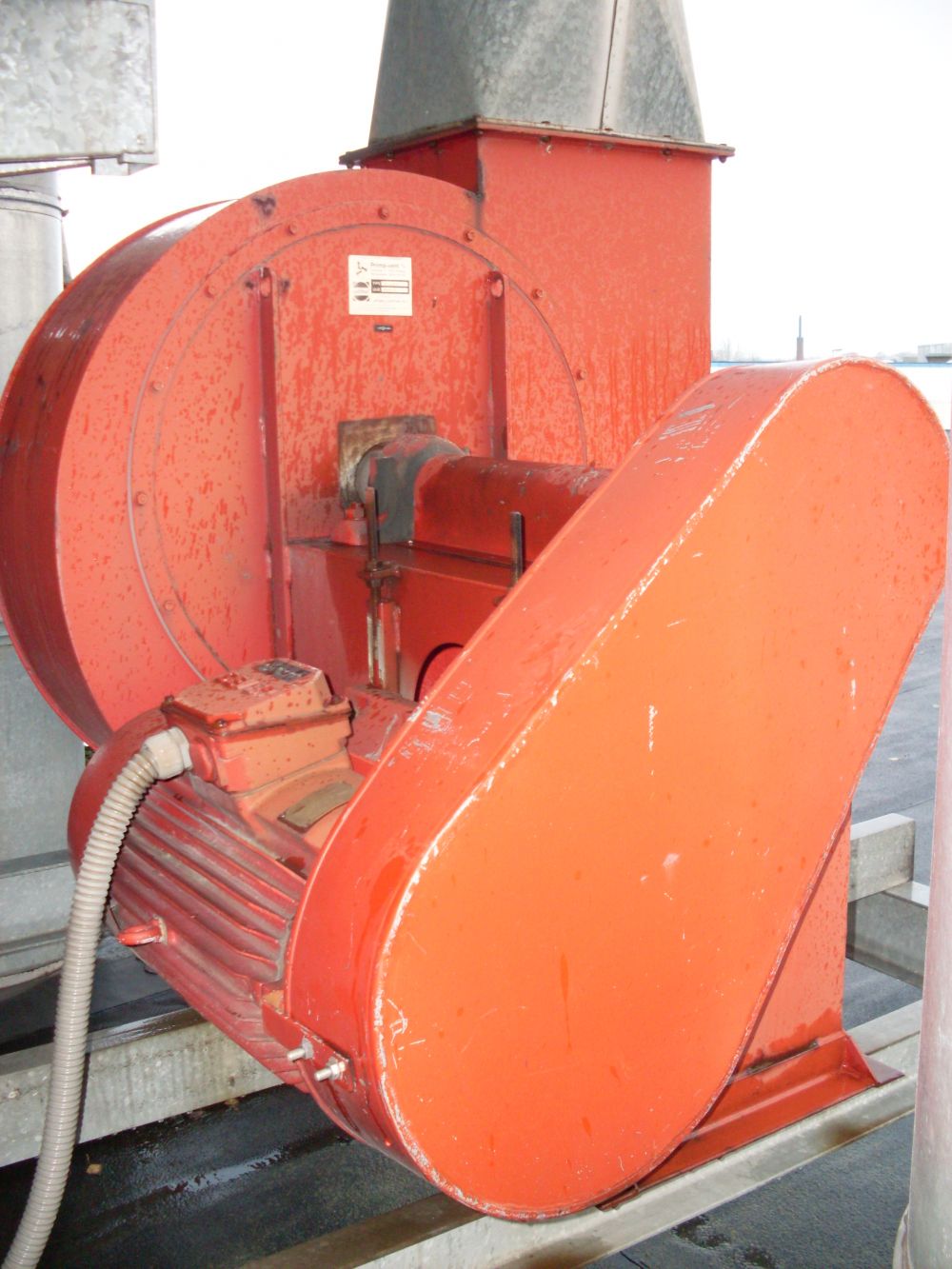

Belt driven ventilator – PVT-R
In this ventilator range, the ventilator wing in installed on an intermediate shaft. The intermediate shaft is connected to the engine shift by means of multi-track pulleys and V-belts. The rotation speed of the ventilator wing depends on the gearing, and it is adjusted to fit the wanted air volume (m3/h) and the wanted total pressure increase (Pa).
This type of ventilator allows an individual capacity adjustment to take place for each operational situation, which facilitates an energy saving dimensioning of the engine impact. The power level ranges from 11 kW to 45 kW.
