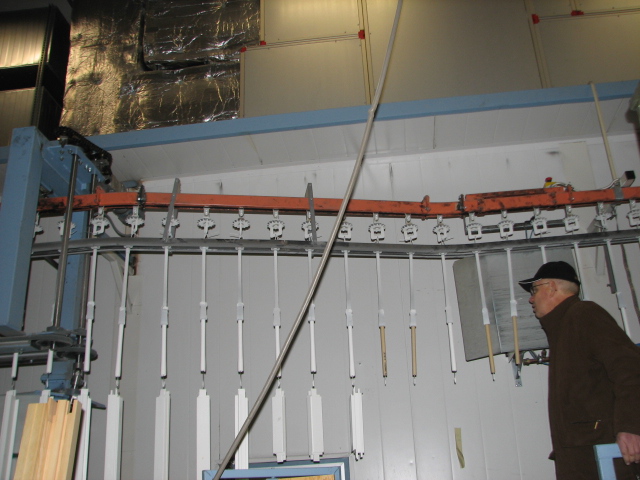

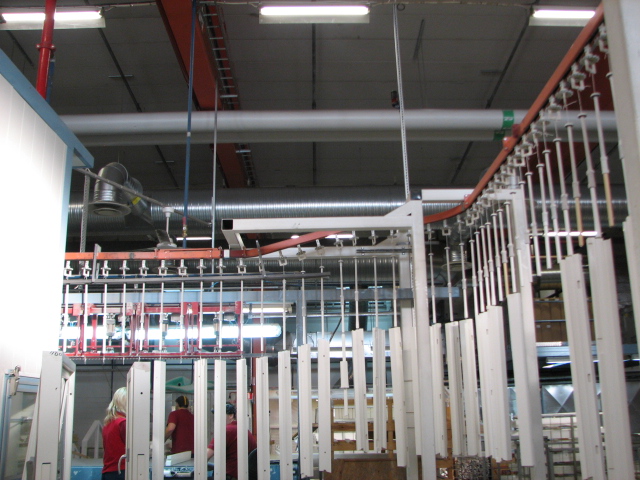

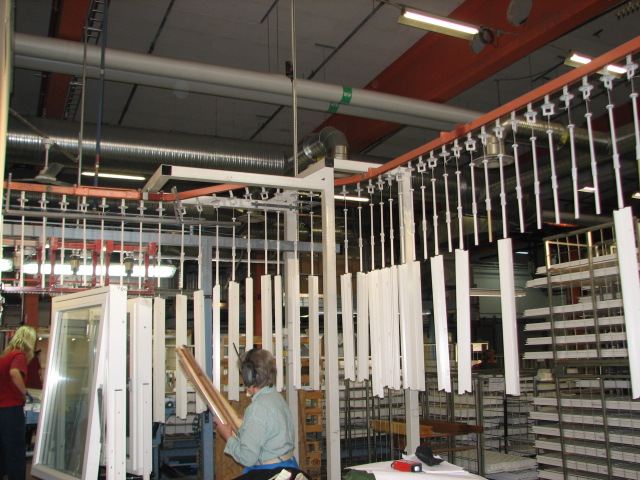

Single conveyors are used to transport mass-produced goods that are subject to one and the same process, e.g. painted lines.
The C-track opening turns upwards, and the cardan chain is fitted with C-hooks that embrace the section, allowing the transported products to hang in the middle of the cardan chain underneath the C-profile.
The profile slot is turning upwards in order for it to prevent contamination of the transported items.
This type of conveyor is mainly utilised in industrial surface treatment procedures.
The cardan chain is able to move in horizontal and vertical curves.
It is pulled through the system by means of a driving unit fitted with an electric engine, which is often connected to a frequency converter for a stepless speed.
Max. load: each item
Max. temperature: 270° C.
